    Re: Details of ships and boats

    View of the deck from the Pilot House is partly obscured by the MOB-boat:




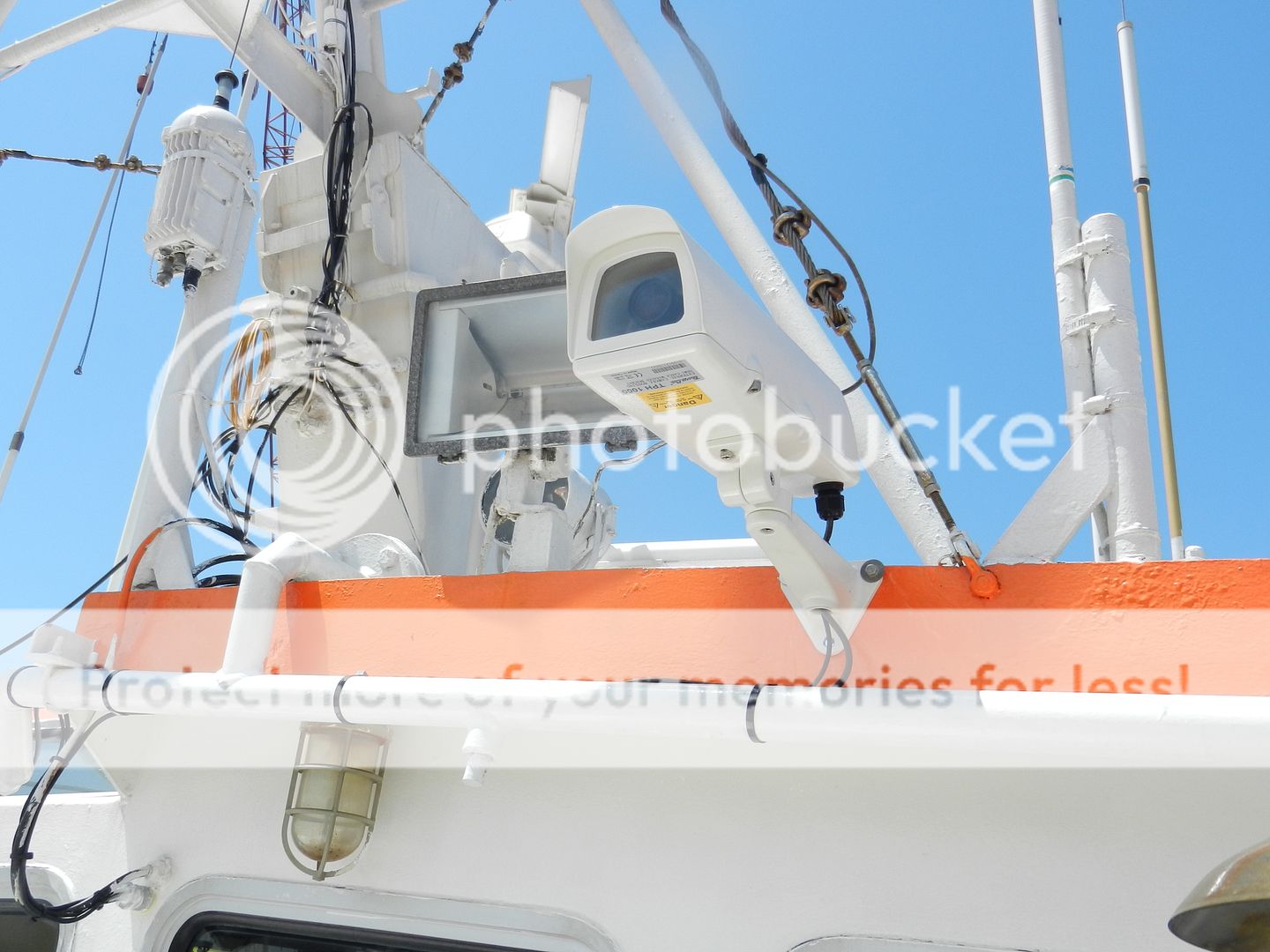

    A CCTV Camera has been installed to look at the deck from the Fwrd. & Aft positions:

    Comment


      Re: Details of ships and boats

      Chest Freezers for provision is inside these boxes on the upper deck:


      Chillers are below deck:

      Comment


        Re: Details of ships and boats

        But let us look at the Pax facilities.

        Reclining seats of "Business Class" quality:


        Safety instruction is posted:


        Emergency Exit to the Fwrd. deck:

        Comment


          Re: Details of ships and boats

          Large Plasma TV and DVD player for entertainment:


          A single toilet is shared with the Master and Chief Engineer who have their cabins at this level:

          Not much for 50 Pax.

          Comment


            Re: Details of ships and boats

            Crew's cabins and Messroom is below deck:


            The Galley and the proud Chef:


            Even a Washing Machine and Drier is supplied:

            Comment


              Re: Details of ships and boats

              A complete and brand new Main Engine is lashed down on deck:






              It was later sealed and boxed up. To be stored at the base for the next job.

              Comment


                Re: Details of ships and boats

                Jump platform for transfer of personnel to/from Boat Landings by Swing Ropes:

                The Hand Rails are removable.

                This one has an adjustable Jump Platform on Stbd. Quarter:

                Raised and lowered by hydraulic cylinders at each corner.

                Access to the platform when raised looked a little "home made":

                Comment


                  Re: Details of ships and boats

                  The Engine Room with 5 Main Engines in a Three / Two configuration:


                  One of the Main Engines:

                  Out of level since the shaft is slanting. (The propellers are sticking below keel line)

                  Main Engine Control and Alarm Panels in the Engine Room:

                  No Engine Control Room.

                  Comment


                    Re: Details of ships and boats

                    Two Generators are in a separate compartment:

                    Surprisingly they are placed athwart ships , not longitudinally as normal. (Not very good for heavy roll, or for list.

                    Compressors in the next compartment:
                    Last edited by ombugge; July 8th, 2012, 06:03.

                    Comment


                      Re: Details of ships and boats

                      Steering gear is very basic, two hydraulic cylinders and a common yoke to three pintles:




                      The Steering gear pumps are in the Engine Room:

                      An unusual arrangement

                      Comment


                        Re: Details of ships and boats

                        Bow Thruster engine:


                        The Engine drive a Hydraulic Pump:
                        Last edited by ombugge; July 8th, 2012, 06:18.

                        Comment


                          Re: Details of ships and boats

                          The Bow Thruster is retractable and azimuthing:


                          Somewhere down there is the Hydraulic Motor that drive the fixed pitch propeller:


                          A similar boat on the breakwater outside Corpus Christie, Tx.:


                          That is all for this vessel.
                          Next, another Crew/Utility vessel build here in Singapore this year.

                          Comment


                            Re: Details of ships and boats

                            Here is another Crew/Utility Vessel, the FOS Leo (FOS = Fast Offshore Supply) This one is even larger, at 60 m. LOA and was designed and built locally here in Singapore. It is also operated by the same company who built it. It is a Multi-purpose vessel with FiFi 1 and DP 1 class notations.

                            I didn't get any good pictures of the FOS Leo externally, but here is her sister ship, the FOS Virgo:




                            And FOS Polaris:

                            Comment


                              Re: Details of ships and boats

                              Large and spacious Bridge:


                              The Fwrd. manouvre position:


                              View from Fwrd. position:

                              Comment


                                Re: Details of ships and boats

                                Aft controls:


                                View from aft controls:

                                Comment
